1/200 Scale General Arrangement Plan
The 1/200 General Arrangement Plan.
The Olympic class liners had many decks to accommodate thousands of passengers, hundreds of crew members, and necessary working and machinery areas. Harland and Wolff, along with the White Star Line, drew up General Arrangement Plans for their ships to facilitate the movement of people and organization.
Our team has meticulously researched each deck using dozens of original construction plans, high-resolution archival photos, survivor accounts, and imagery from the two wreck sites. After years of study, we proudly state that our General Arrangement Plans are the most complete and accurate recreations available today for Olympic, Titanic, and Britannic.
RMS Titanic (1912)
RMS Olympic (1911)
RMS Britannic (1915)
Designed in the style of Olympic plans from the 1920s.

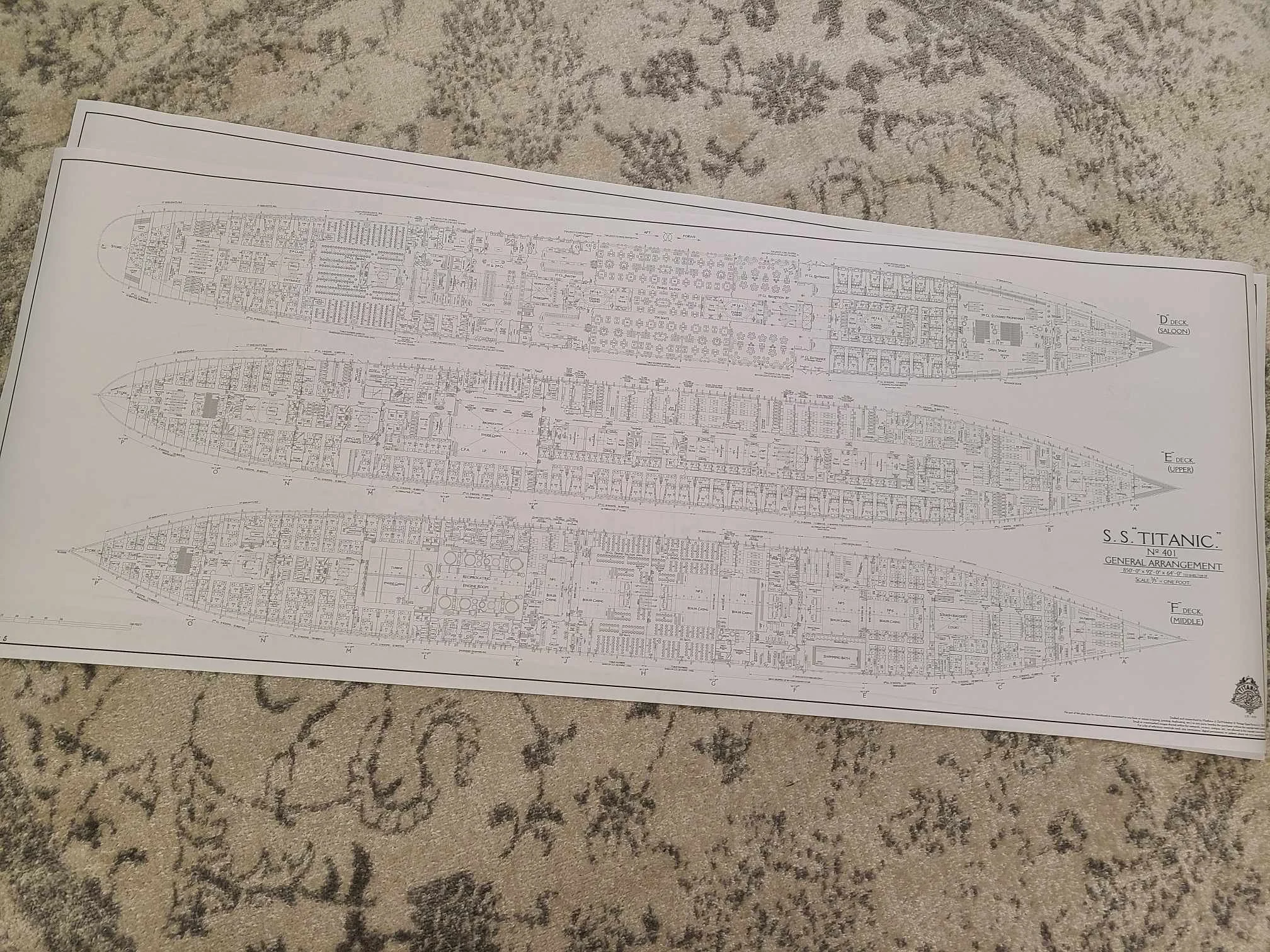

One set of plans consists of five pages, each 24" by 60".
Printed ourselves on 20lb bond white paper, black ink, and directly from our files to ensure quality and clear lines.Every plan is printed when the order is placed to reflect the latest versions.

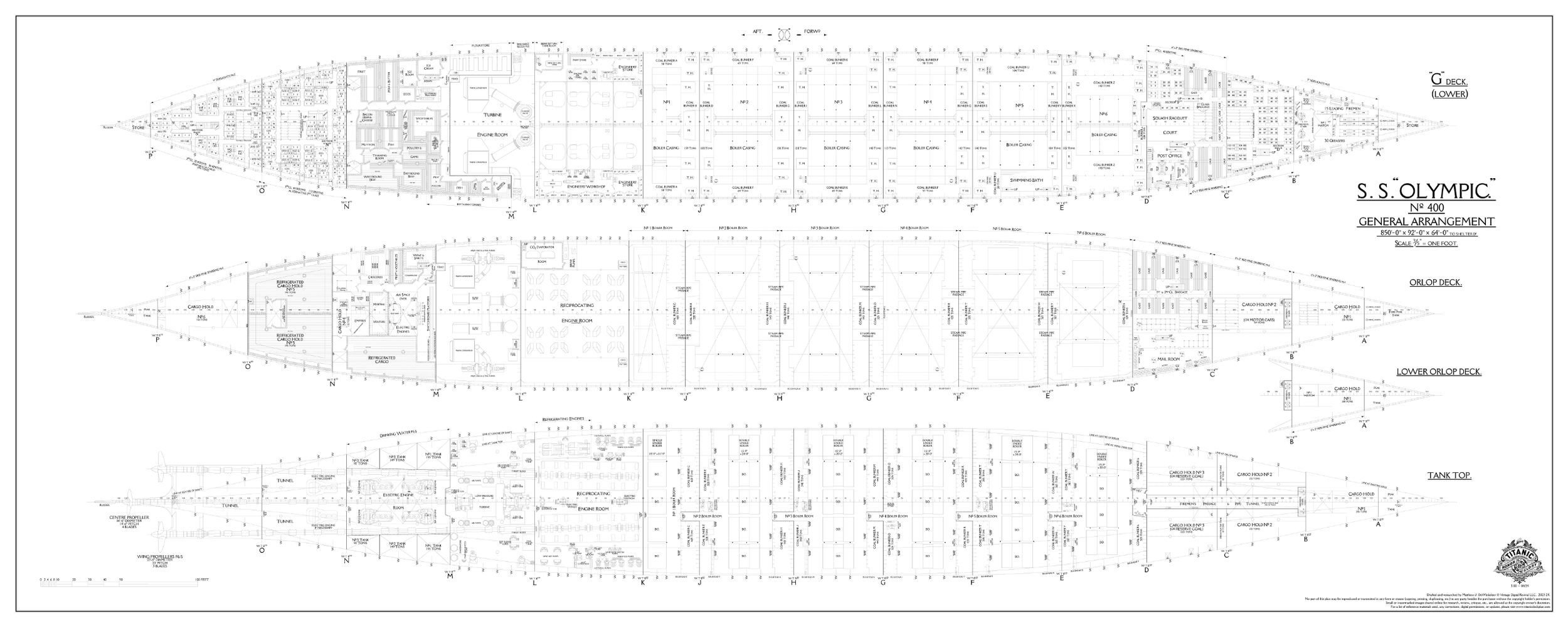

This 1/200 scale plan includes the full side profile which has all rigging, complete funnels, and masts!
Questions about shipping? Check out our FAQ.
Add one or all of the Digital Plans Package Downloads to your purchase discounted!
The download will be emailed to you within 24 hours after purchase.
